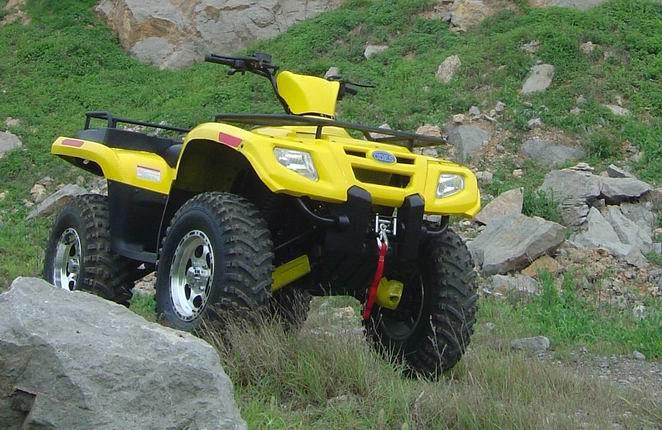

ATV400 400cc Ail Cooled and Oil Cooled with Shaft Drive
Detailed Product Description
|
Product Description
Dimension: 2100x1210x1200mm
Wheelbase: 1320mm
Ground Clearance: 300mm
Dry Weight: 286kgs
Gross Weight: 320kgs
Fuel Tank: 13L
Max Speed: 75km/h
Brake System F: double disks R: Singe Disk
Gearshift Mode:
Automatic Clutch, Five Speeds,
One Neutral With inside Reverse Gear
Transmission Mode: Shaft
Drive System: 2WD-4WD
Tire Front (F/R) 25x8-12 / 25x10-12
Engine Type 4-Stroke, Single-Cylinder
Cooling System Air-Cooled + Oil-Cooled
Max power: 12kw/5200rpm
Max torque: 23N*m/4000rpm
Battery: 12V-14Ah
Starting System:Electric/Hand-Pull
Container Qty: 20FT: 8PCS, 30 Units per 40HQ ( without rear box)
Container Qty: 20FT:8PCS , 27Units per 40HQ ( with rear box)
|
